Covering 24V to 360V: ENEROC Aerial Work Platform Lithium Battery System Tailored for Mainstream Models

With the extensive application of aerial work platforms in diverse scenarios such as aerial firefighting, factory ceiling installation, and steel structure installation, the performance requirements for power batteries in equipment continue to increase. As a professional provider of lithium battery solutions for non-road vehicles, ENEROC provides a systematic lithium battery solution for various aerial work platforms including scissor lifts, articulating booms, and telescopic booms. This article introduces the technical features and practical value of the ENEROC aerial work platform lithium battery from three perspectives: battery cell quality, system management, and application compatibility.

1. Automotive Grade CATL Battery Cells: Ensuring Performance and Safety from the Source

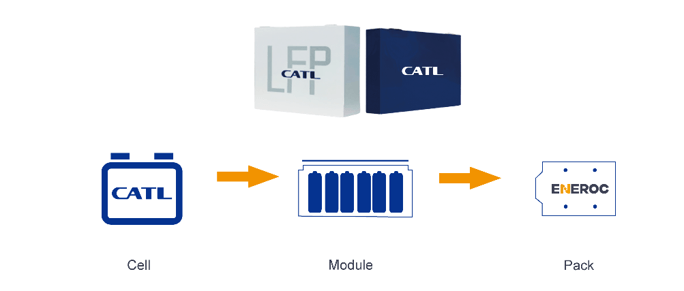

Battery cells are the foundation of the battery system; their quality directly determines the cycle life, safety, and consistency of the battery pack. ENEROC aerial work platform lithium batteries use automotive grade CATL lithium battery cells, with a defect rate below one part per billion (PPB) and a high thermal runaway triggering temperature, significantly reducing the risk of thermal propagation. They have also passed more than 400 multi-level product tests to guarantee excellent safety and reliability.

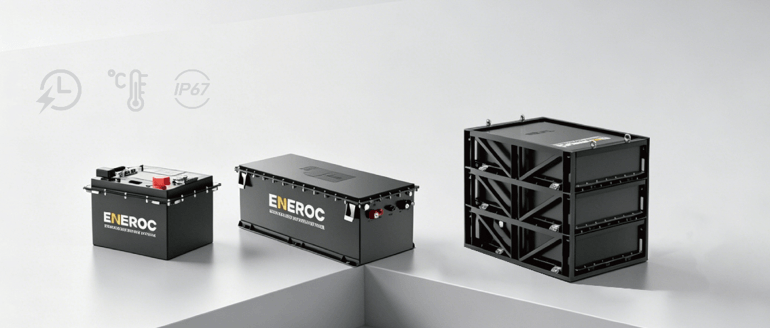

Regarding battery pack specifications, ENEROC lithium batteries offer multiple configurations to satisfy the power requirements of various work platforms. The current product line covers a range of capacities from 96 Ah to 604 Ah, with battery cells exhibiting smooth discharge curves and excellent internal resistance consistency, providing a solid foundation for the long-cycle operation of the battery pack.

2. BMS and 4G Cloud Platform: Realizing Intelligent Operation and Maintenance Management

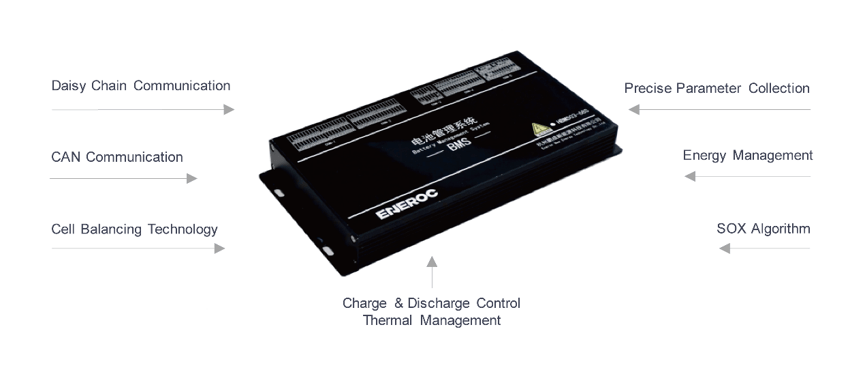

The battery management system serves as the core control unit of the lithium battery pack, responsible for state monitoring, balancing management, and safety protection. The BMS can collect real-time key parameters such as voltage, current, and temperature of each battery cell, and perform dynamic balancing adjustments to prevent overcharge, over-discharge, or localized overheating. Simultaneously, the system supports precise estimation of SOC and SOH, providing users with intuitive references for remaining capacity and health status, enabling informed work planning.

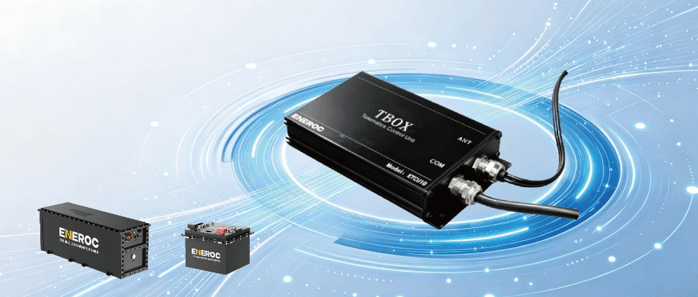

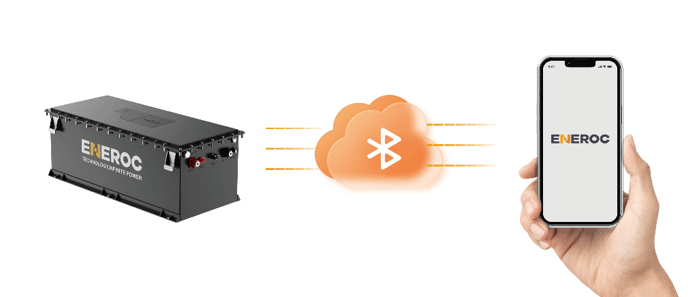

On this basis, the ENEROC Lithium Battery can be optionally equipped with a 4G module to access the cloud platform, realizing remote data exchange. Via PC client, Android app, or WeChat mini program, users can check the real-time status of the battery pack, including voltage, current, SOC, and device ID information. The platform features a big data dashboard, capable of presenting SOC daily variation curves, voltage fluctuation trend charts, and more. This data helps technicians assess battery usage patterns and anticipate potential anomalies.

In after-sales maintenance scenarios, the GPS positioning function of the 4G module enables rapid localization of faulty equipment. Together with the offline data automatically recorded by the System, the after-sales team can perform remote or on-site diagnostics, thereby shortening the fault resolution cycle. In addition, the OTA remote upgrade feature enables the battery management software and firmware to be updated without a physical connection, which simplifies the maintenance process and reduces on-site operational costs.

3. Wide Voltage Platform and Multi-model Compatibility: Covering Mainstream Aerial Work Scenarios

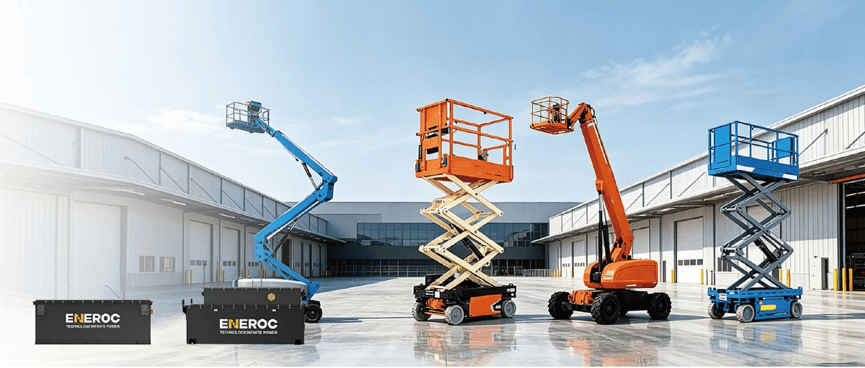

Aerial work platforms are diverse, and different models have considerable differences in battery system voltage and capacity requirements. The ENEROC lithium battery product line covers a voltage range from 24V to 360V, with capacities ranging from 96Ah to 604Ah, compatible with mainstream aerial work platforms such as scissor lifts, articulating booms, and telescopic booms. For example, on scissor lift platforms, ENEROC provides various capacity configurations within the 24 V voltage platform, allowing flexible choices based on equipment power needs and operating duration. Articulating boom platforms typically use 48V or 80V systems, capable of handling the high current loads generated by boom lifting and slewing mechanisms. Telescopic boom platforms have higher energy demands, providing 80V and 360V high-voltage systems suitable for long-duration, high-intensity continuous construction operations. Currently, ENEROC has supplied lithium battery solutions to leading domestic aerial work platform manufacturers including Dingli, XCMG, Zoomlion, Sany, and Lingong. The products have been validated through actual installations and are applied in typical scenarios such as aerial firefighting, factory ceiling construction, and steel structure installation.

4. Full operational adaptability and low maintenance costs

Compared with traditional lead-acid batteries, lithium batteries offer advantages in charge-discharge efficiency, energy density, and cycle life. The ENEROC lithium battery supports all-weather and all-condition operation, maintaining stable performance within the temperature range of -30°C to 65°C, and delivering consistent output in complex environments including high temperature, low temperature, and humidity. Moreover, the battery system features an IP 67 protection rating, effectively preventing dust and liquid ingress, making it suitable for harsh working conditions such as construction sites and mines.

In terms of maintenance, lithium batteries require no water addition or electrolyte replenishment; daily operation only requires proper charge and discharge management. Combined with the remote monitoring and fault early warning functions of the 4G Cloud Platform, users can proactively identify potential issues, avoiding project delays caused by unexpected shutdowns. This “ zero maintenance, predictable” feature helps reduce operational costs across the entire lifecycle.

Summary

ENEROC Aerial Work Platform Lithium Battery is based on automotive-grade CATL battery cells, with BMS and the 4G Cloud Platform as the management core. Through a wide voltage product line covering various models, it is committed to providing safe, reliable, and long-life power solutions for the aerial work sector.
