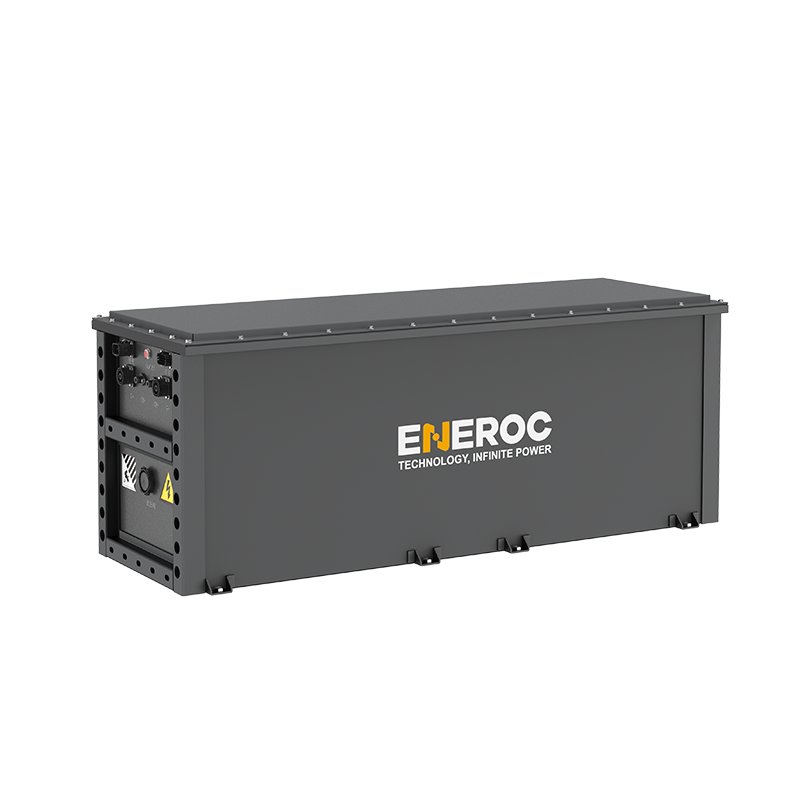

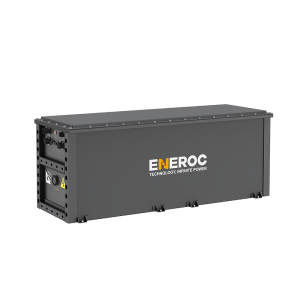

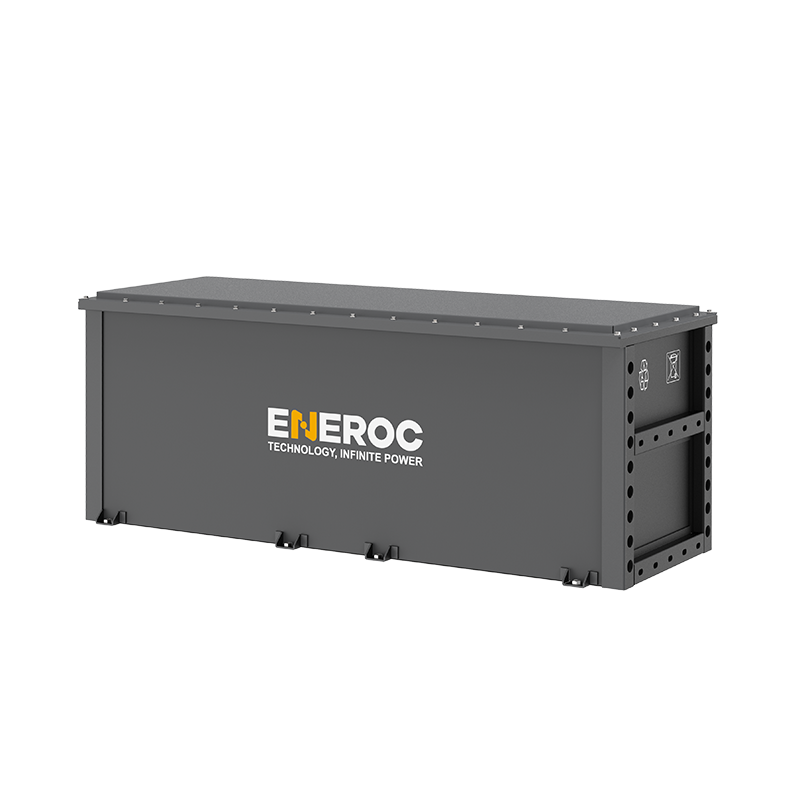

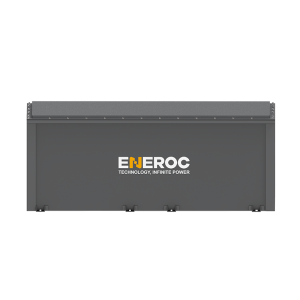

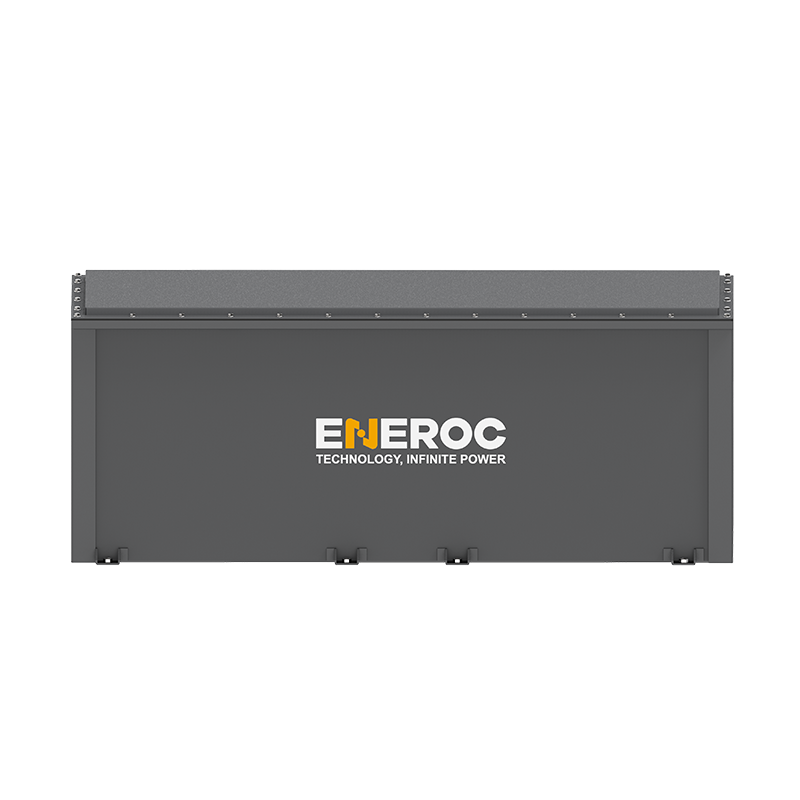

80V Aerial Work Platform LiFePO4 Battery
Product List
| Voltage(V) | Nominal Capacity (Ah) |
Rated Energy (kWh) |
Life Cycles | Dimensions (L * W * H, mm) | Continuous Discharge(A) | Max. Discharge (30s,A) | Charging (℃) | Discharge (℃) | IP Grade |
| Articulated Boom Aerial Work Platform | |||||||||
| 80.5 | 228 | 18.35 | >3500 times | 904*490*600 | 228 | 456 | 0℃~60℃ | -30℃~60℃ | IP67 |
| 268 | 21.57 | 904*490*600 | 271 | 542 | |||||
| 302 | 24.31 | 866*648*621 | 302 | 604 | |||||
| Straight Boom Aerial Work Platform | |||||||||
| 77.28 | 456 | 35.24 | >3500 times | 1352*472*530 | 456 | 912 | 0℃~60℃ | -30℃~60℃ | IP67 |
| 80.5 | 400 | 32.20 | 1233*645*613 | 404 | 808 | ||||
| 519 | 41.78 | 1233*645*613 | 519 | 1038 | |||||
| 536 | 43.15 | 1352*472*530 | 542 | 1084 | |||||
| 604 | 48.62 | 1352*472*530 | 604 | 1208 | |||||
Benefit
Benefit
-
Long Lifespan 3,500 Cycles
-
Cost Cut-Off & Labor Saving
-
High Efficiency & More Uptime
-
Safe - Better Thermal and Chemical Stability
-
Fast & Opportunity Charge
-
No Spare Battery, Exchange Required
-
Zero Maintenance
-
Eco-Friendly No Harmful Emission And Distill Water Spills
-
Module & PACK
- - Cell to Pack technology
- - Standard packs are universal for most vehicle models
- - Strong customization to adapt to customers’ different requirement
-
CATL Cell
- - long lifetime of 12 years/3,500 full cycles
- - high uniformity and stability
- - excellent performance for cold storage
- - defect rate of one millionth
-
Self-developed BMS
- - Advanced cell balancing technology
- - Good adaptability to work conditions of off-road vehicles
- - Highly integrated protection board to replace traditional BMS
- -easy and low-cost maintenance -smaller size allowing batteries to cover wider range of forklift
