24V Truck Parking LiFePO4 Battery
Product List

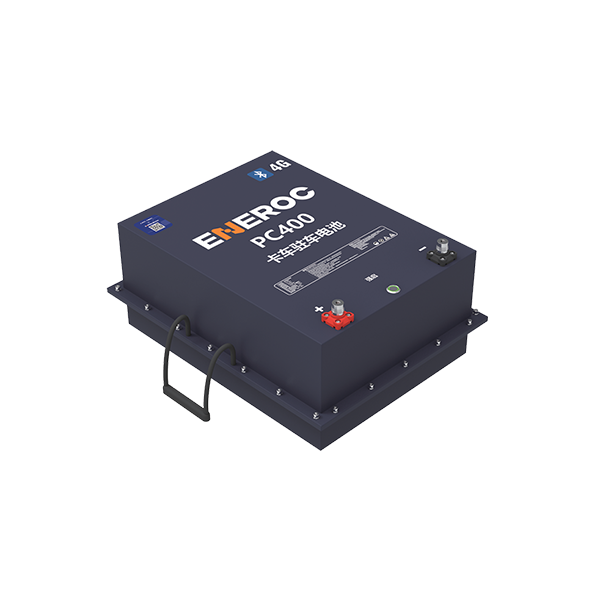

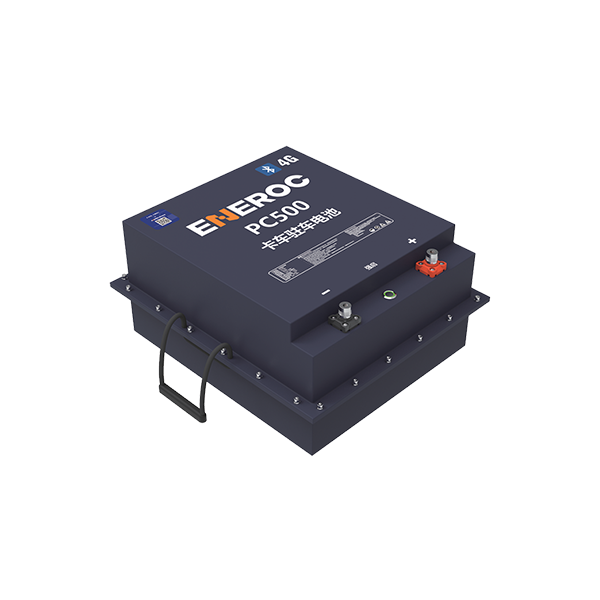

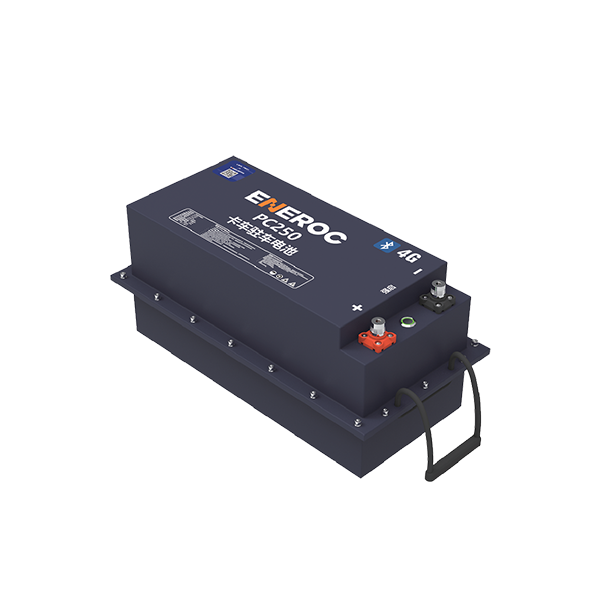

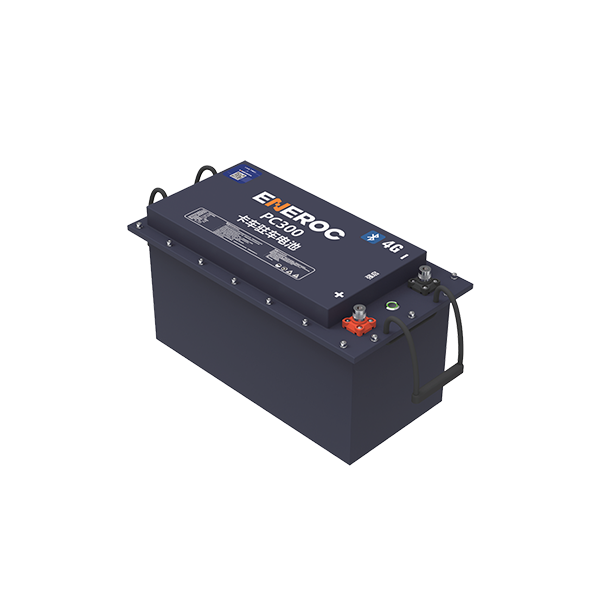

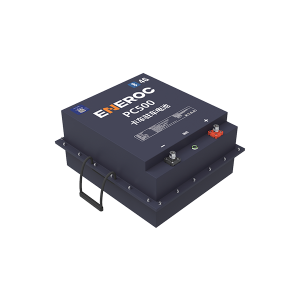

| Project/Model | PC250 | PC300 | PC400 | PC500 |
| Electricity (kWh) | 4.5 | 5.2 | 6.5 | 8 |
| Battery capacity (Ah) | 173 | 200 | 250 | 302 |
| Rated voltage V | 25.76 | 25.76 | 25.76 | 25.76 |
| Battery cell brands | CATL | CATL | ||
| Maximum continuous charging current A | 150 | 150 | 150 | 150 |
| Maximum continuous discharge current A | 150 | 150 | 150 | 150 |
| Maximum starting current A | 2000 | 2000 | 2000 | 2000 |
| Operating ambient temperature | -35℃~60℃ | -35℃~60℃ | -35℃~60℃ | -35℃~60℃ |
| Low temperature heating | Bluetooth wireless preheating | |||
| Battery insulation | Intelligent heat preservation during charging and discharging | |||
| Bluetooth | Monitor battery status, one-click hard start, one-click storage | |||
| 4G | Remote monitoring of real-time battery status, battery GPS positioning, and OTA upgrades. | |||
| Anti-throw load | The integrated supercapacitor module can absorb abnormally high voltages generated by load dumping, preventing damage to the vehicle’s electrical components. | |||
| Intelligent power saving mode | Enter power saving mode when the battery has no output for an extended period of time. | |||
| Equalization function | Charging equalization | |||
| Short circuit protection | It has the function of detecting and protecting against output short circuits. | |||
| Bottom dimensions (length × width) mm | 474×214 | 454×217 | 475×355 | 439×379 |
| External dimensions (length × width × height) mm | 520×260×228 | 500×263×265 | 520×400×210 | 484×424×228 |
| Protection level | IP67 | IP67 | IP67 | IP67 |
| Implementation Standards | GB 38031-2025 Safety Requirements for Power Batteries for Electric Vehicles; GB/T 31484-2015 Cycle Life Requirements and Test Methods for Power Batteries for Electric Vehicles | |||
Benefit
Benefit
-
Supporting 2000A instantaneous high-current discharge
-
Easily compatible with and capable of starting various heavy-duty trucks
-
Ensuring smooth starting even under extreme operating conditions
-
Intelligent power protection strategies for multiple scenarios
-
Intelligent connectivity, integrating 4G/Bluetooth interaction
-
Real-time vehicle status monitoring for efficient
-
Modules and Packs
- Highly integrated power battery platform, with cells directly integrated into the battery pack.
- Strong customization capabilities, allowing for products tailored to specific operating conditions and dimensions.
- Robust quality, achieving IP67 protection rating, maintaining excellent performance even in harsh industrial environments.
-
CATL Battery
- Long Lifespan: Up to 3,500 complete cycles, 4 times the lifespan of lead-acid batteries.
- High Uniformity and Stability: High-quality cells used in top-tier electric vehicles.
- Safety: Withstands collision, compression, fire, high and low temperature, and impact
tests without catching fire or exploding.- Stable Quality: Defect rate of only one in a million.
-
Self-developed BMS
- Self-developed algorithms: SOH algorithm based on DCR measurement with ≤5% error, industry-leading.
- Battery management: Power conversion and distribution, low operating and sleep power consumption, maximizing efficiency.
- Fault alarms: Timely alarms by monitoring battery status to prevent serious battery damage.
- Easy and low-cost maintenance.
