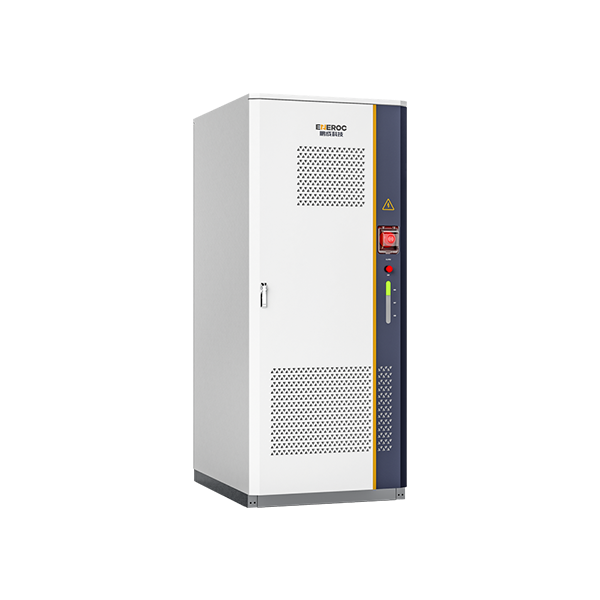

Liquid Cooling Outdoor Integrated ESS Cabinet

Employing a standardized design, the lithium battery system, battery management system, energy storage converter, firefighting system, liquid cooling thermal management system, and power distribution system are integrated within an outdoor all-in-one cabinet. This configuration delivers high safety, reliability, and long service life energy storage products for commercial and industrial users. Flexible configurations allow adaptation to various application re quirements.

Battery Capacity: 215.04 kWh

Rated Power: 100 kW

Rated Voltage: 768 V

Cooling Method: Liquid cooling

Fire Protection System: Pack-level perfluorohexanone with reserved water fire protection interface

Dimensions (W×D×H): 1000×1350×2450 mm

Weight: < 3 t

Operating Temperature: -30 to 55 ℃

Communication Interface: Wireless 4G / Ethernet

Protection Rating: IP54

Relative Humidity: 0~95% RH

Enquire Now Download

Product List

System parameters
Battery Pack Parameters
Project	Unit	Product Parameters
Cell type		LFP 280Ah
Combination method		1P48S
Rated voltage	Vdc	153.6
Rated energy	kWh	43.008
Magnification	Cp	≤0.5
Battery cluster parameters
Project	Unit	Product Parameters
Pack number of strings		5S
Operating voltage range	Vdc	672~864
Rated voltage	Vdc	768
Rated energy	kWh	215.04
Magnification	Cp	≤0.5
AC system parameters
Project	Unit	Product Parameters
AC side rated power	kW	100
AC side maximum power	kW	110
Voltage range	Vac	Grid-connected: 400V (-20% to +15%) Off-grid: AC400V ±3%
Frequency	Hz	50/60
Power factor		-0.99 to +0.99
Total harmonic distortion of current		≤3% (full load)
Communication access methods		Three-phase four-wire
Cooling method		Forced air cooling
Isolation methods		none
Standard parameters
Project	Unit	Product Parameters
Dimensions (WDH)	mm	1000×1350×2450
Weight	t	<3
Operating temperature range	℃	-30~55
Relative humidity	%RH	0~95%RH
Working altitude	m	≤3000
Cooling method		Liquid cooling
Protection level		IP54
Communication interface		4G Wireless/Ethernet
Qualifying Method		Down in, down out
Firefighting methods		Pack-grade perfluorohexanone, with reserved water fire-fighting interface.

Benefit

High-quality battery cells from leading manufacturers
Advanced liquid cooling technology
Supports multiple units operating in parallel
Real-time fire detection
High safety performance
Intelligent platform, supporting mobile APP and web access
