60V Low-speed Vehicles High-energy LiFePO4 Battery
Product List

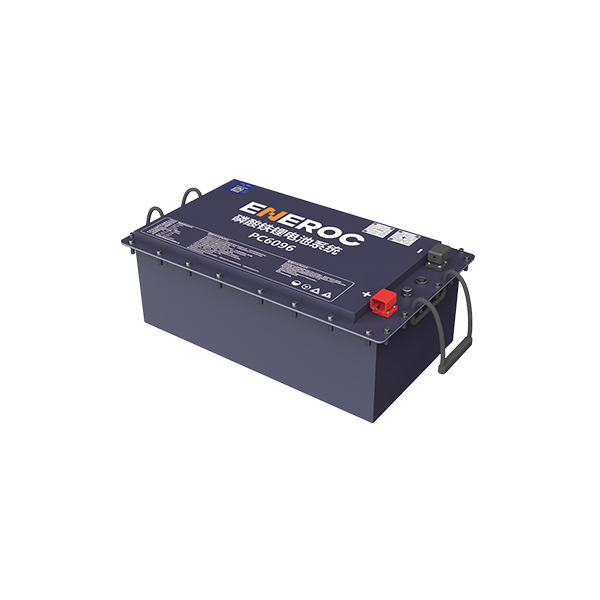

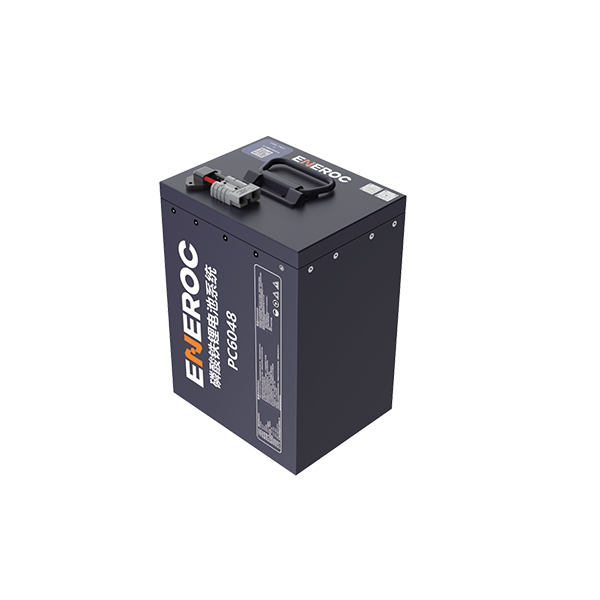

| Model | PC6048 | PC6096 |
| Energy (kWh) | 2.9 | 5.8 |
| Capacity (Ah) | 45 | 90 |
| Nominal Voltage (V) | 64.4 | |
| Voltage range (V) | 50~73 | |
| Cell type | Lithium iron phosphate (LFP) | |
| Cell brand | CATL | |
| Dimensions (L × W × H) (mm) | 330×229×180 | 565×330×220 |
| Maximum compatible motor power (W) | 2000 | 4000 |
| Compatible charger | 73V 5A | 73V 10A |
| Charging method | Blind charging | |
| Maximum continuous discharge current (A) | 45 | 90 |
| Maximum pulse discharge current | 60A, 30S 90A, 10S | 120A, 30S 180A, 10S |
| Operating temperature | Discharge: -20℃~60℃ Charge: -15℃~55℃ | |
| Bluetooth | Standard configuration, mobile APP monitoring | |
| Protection level | IP65 | IP67 |
| Weight (KG) | 22 | 45 |
| Protection function | System overvoltage protection, system undervoltage protection, cell overvoltage protection, cell undervoltage protection, overcurrent protection, overtemperature protection, charging low temperature protection. | |
| Meter | / | Optional |
| Output interface | Anderson (standard adapter cable) | Terminal |
Benefit
Benefit
-
Utilizes CATL automotive-grade lithium iron phosphate cells
-
Ultra-long Battery Life
-
Low-temperature adaptability, easily handling harsh operating conditions
-
High safety performance
-
Significantly reduces total lifecycle costs
-
Industry-leading 5-year extended warranty
-
Modules and Packs
- Highly integrated power battery platform, with cells directly integrated into the battery pack.
- Strong customization capabilities, allowing for products tailored to specific operating conditions and dimensions.
- Robust quality, achieving IP67 protection rating, maintaining excellent performance even in harsh industrial environments.
-
CATL Battery
- Long Lifespan: Up to 3,500 complete cycles, 4 times the lifespan of lead-acid batteries.
- High Uniformity and Stability: High-quality cells used in top-tier electric vehicles.
- Safety: Withstands collision, compression, fire, high and low temperature, and impact tests without catching fire or exploding.
- Stable Quality: Defect rate of only one in a million.
-
Self-developed BMS
- Self-developed algorithms: SOH algorithm based on DCR measurement with ≤5% error, industry-leading.
- Battery management: Power conversion and distribution, low operating and sleep power consumption, maximizing efficiency.
- Fault alarms: Timely alarms by monitoring battery status to prevent serious battery damage.
- Easy and low-cost maintenance.
