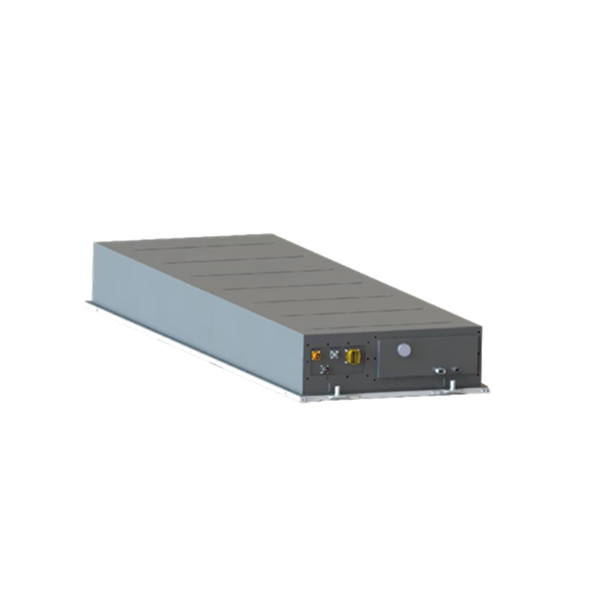

Liquid-Cooled Pack (1P104S)

The Eneroc Liquid-Cooled Energy Storage Pack (1P104S) features a rated energy exceeding 104kWh and integrates efficient liquid cooling technology to ensure a temperature difference between battery cells ≤2℃. It maintains excellent thermal management and safety performance under large capacity conditions, delivering a stable, reliable, and energy-dense large-scale storage unit.

  • Battery Cell Type: LFP 314Ah
  • Configuration Method: 1P104S
  • Rated Voltage: 332.8 V
  • Rated Energy: 104.499 kWh
  • C-rate: ≤ 0.5 Cp
  • Weight: 690 kg
  • Dimensions (W×D×H): 810 × 2240 × 245 mm
  • Temperature Control Method: Liquid Cooling
    • Enquire NowDownload

    Product List

    Project Unit Product Parameters
    Cell type LFP314Ah
    Combination method 1P104S
    Rated voltage Vdc 332.8
    Rated energy kWh 104.499
    Magnification Cp ≤0.5
    Weight kg 690
    Size mm 810×2240×245
    Temperature control method Liquid cooling

    Benefit

    Benefit

    • High-quality battery cells from leading manufacturers

      High-quality battery cells from leading manufacturers

    • High cycle life

      High cycle life

    • High energy density

      High energy density

    • Pack-level fire protection

      Pack-level fire protection

    • High safety performance

      High safety performance

    • Built-in liquid cooling structure, designed temperature difference ≤2℃

      Built-in liquid cooling structure, designed temperature difference ≤2℃

    Full-stack energy storage solutions, driving a green future with electricity.

      • Covering a full range of products including air-cooled/liquid-cooled outdoor cabinets, containers, and residential storage.
      • Meeting the application needs of various scenarios such as industrial, commercial, and residential applications.
      • Providing comprehensive solutions from investment analysis and operation and maintenance to full lifecycle services.
    • CATL Battery

      CATL Battery

        - CATL battery cells undergo rigorous testing under extreme conditions, including impact, compression, puncture, fire, high and low temperatures, and shock.

        - Safe and reliable, they will not catch fire or explode.

        - The pack has an IP67 protection rating, ensuring battery safety.

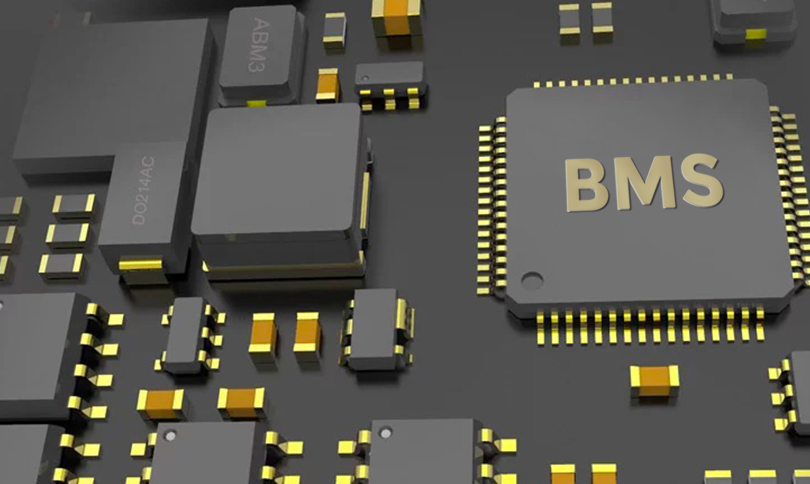

    • Self-developed BMS

      Self-developed BMS

        - Full interface and protocol compatibility, seamlessly connecting to both national standards and mainstream international protocols.

        - Flexible electrical topology expansion to meet your diverse electrical connection needs.

        - A comprehensive safety protection system provides proactive safety protection for your system.

        - Core algorithms optimize lifespan, ensuring the battery cells are always in optimal condition.

    • 4G Module

      4G Module

        - Ease of Use: The cloud platform includes PC, Android, and WeChat mini-program versions, compatible with most devices.

        - Intelligent Monitoring: The 4G module can monitor battery health status in real time.

        - Fault Location: Timely alarms are triggered for battery faults, and the 4G positioning function quickly pinpoints the location of the faulty device.

        - Data Analysis: The platform features a big data dashboard for centralized analysis and processing of fault and operational information.

        - Remote Upgrades: The 4G module can perform real-time software upgrades and updates.
