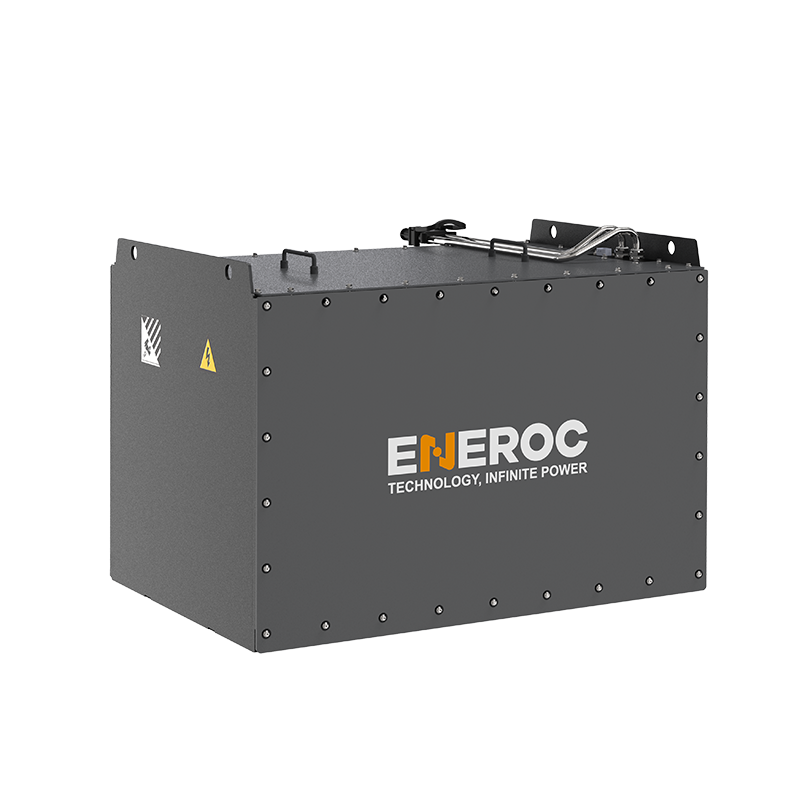

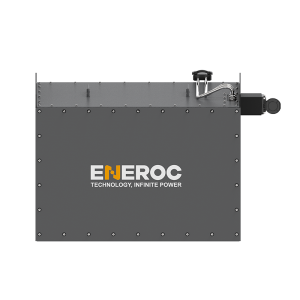

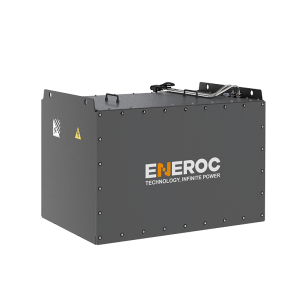

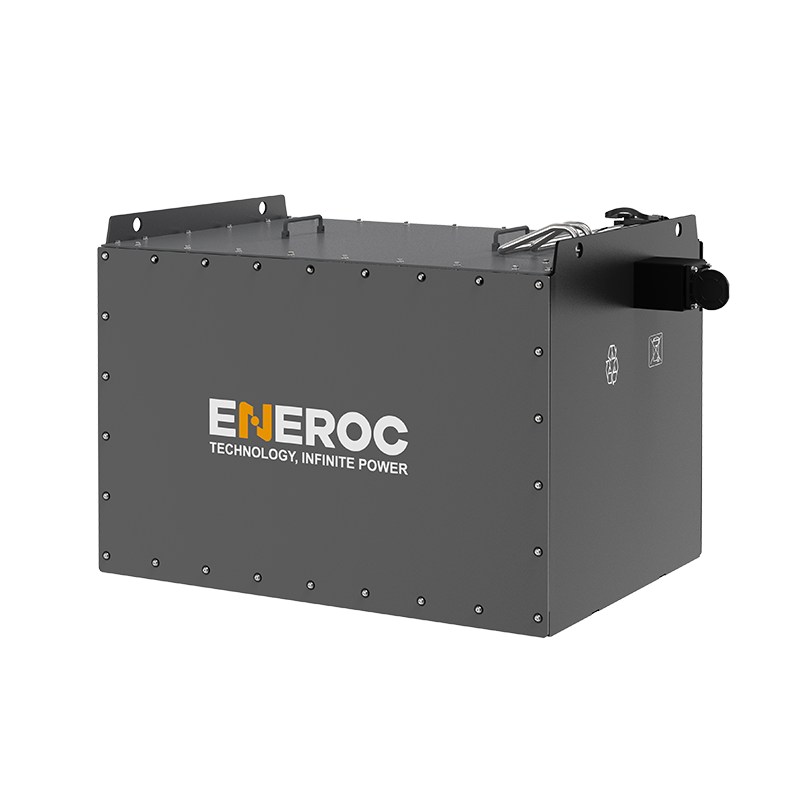

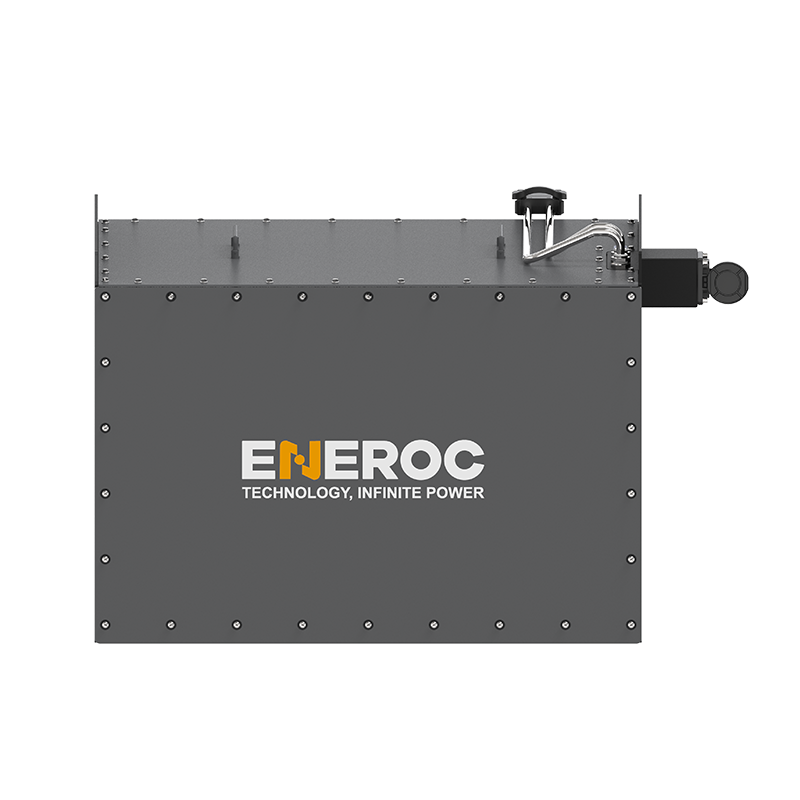

80V Forklift LiFePO4 Battery
Product List
| Model | Nominal Voltage(V) | Nominal Capacity(Ah) | Energy(kWh) | Dimension(No Counterweight) (L*W*H,mm) | Lifetime, @25℃ | Continuous Discharge(A) | Max. Discharge(@30S,A) | Charger Operation (℃) | Discharging(℃) | IP Grade |
| Z268C24AFP | 77.28 | 268 | 20.71 | 1015*290*575 | 12 years, ≥4,000 cycles | 268 | 804 | -20℃~45℃ | -30℃~65℃ | IP67 |
| Z302C25AFP | 80.5 | 302 | 24.31 | 900*425*575 | 302 | 906 | -20℃~45℃ | -30℃~65℃ | ||
| Z400C25AFP | 400 | 32.2 | 850*505*575 | 400 | 1000 | -20℃~45℃ | -30℃~65℃ | |||
| Z456C25AFP | 456 | 36.71 | 905*550*585 | 456 | 1000 | -20℃~45℃ | -30℃~65℃ | |||
| Z536C25AFP | 536 | 43.15 | 865*590*575 | 500 | 1000 | -20℃~45℃ | -30℃~65℃ | |||
| Z604C25AFP | 604 | 48.62 | 970*590*575 | 500 | 1000 | -20℃~45℃ | -30℃~65℃ | |||
| Z684C25AFP | 684 | 55.06 | 955*705*575 | 500 | 1000 | -20℃~45℃ | -30℃~65℃ | |||
| Z804C25AFP | 804 | 64.72 | 1000*690*600 | 500 | 1000 | -20℃~45℃ | -30℃~65℃ | |||
| Z906C25AFP | 906 | 72.93 | 970*815*575 | 500 | 1000 | -20℃~45℃ | -30℃~65℃ |
Benefit
Benefit
-
Long Lifespan 4,000 Cycles
-
Cost Cut-Off & Labor Saving
-
High Efficiency & More Uptime
-
Safe - Better Thermal and Chemical Stability
-
Fast & Opportunity Charge
-
No Spare Battery, Exchange Required
-
Zero Maintenance
-
Eco-Friendly No Harmful Emission And Distill Water Spills
-
Module & PACK
- - Cell to Pack technology
- - Standard packs are universal for most vehicle models
- - 24-700V voltage platform enables us to cover most forklift needs
- - Strong customization to adapt to customers’ different requirement
-
CATL Cell
- - long lifetime of 12 years/4,000 full cycles
- - high uniformity and stability
- - excellent performance for cold storage
- - defect rate of one millionth
-
Self-developed BMS
- - Advanced cell balancing technology
- - Good adaptability to work conditions of off-road vehicles
- - Highly integrated protection board to replace traditional BMS
- -easy and low-cost maintenance -smaller size allowing batteries to cover wider range of forklift
