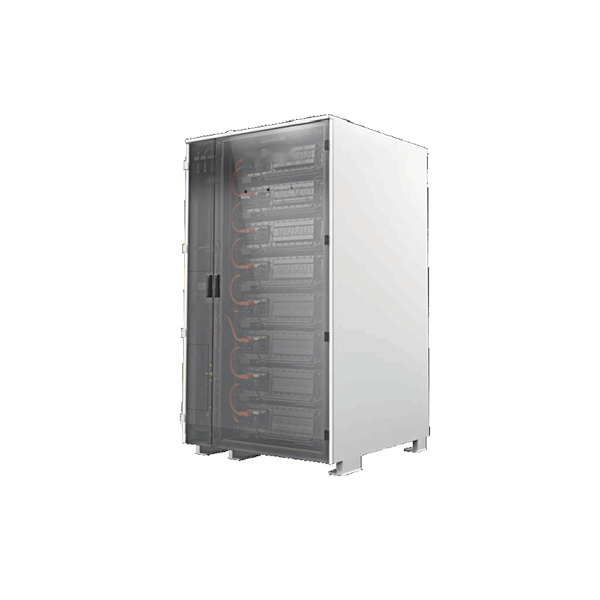

DC Liquid Cooling Battery Cabinet

Employing a standardized design, the lithium battery system, battery management system, firefighting system, liquid cooling thermal management system, and power distribution system are integrated within a single cabinet, offering commercial and industrial users a highly safe, reliable, and long-life energy storage product that can be flexibly configured to suit various application scenarios.

Battery Capacity: 417.9968 kWh

Rated Power: 209 kW

Rated Voltage: 1331.2 V

Cooling Method: Liquid cooling

Firefighting System: Aerosol with Reserved Water Firefighting Interface

Dimensions (W×D×H): 1400×1250×2450 mm

Weight: <4 t

Operating Temperature: -25 to 55 ℃

Communication Interface: Wireless 4G / Ethernet / RS485

Protection Rating: IP54

Relative Humidity: 0~95% RH

Enquire Now Download

Product List

System parameters
Battery Pack Parameters
Project	Product Parameters
Cell type	LFP 314Ah
Combination method	1P52S
Rated voltage (Vdc)	166.4
Rated energy (kWh)	52.2496
Magnification (Cp)	≤0.5
Battery cluster parameters
Project	Product Parameters
Pack number of strings	8S
Operating voltage range (Vdc)	1040~1500
Rated voltage (Vdc)	1331.2
Rated energy (kWh)	417.9968
Rated charge and discharge power (kWh)	209
Rated charge and discharge current (A)	157
Maximum charging and discharging current (A)	200, <1min
Magnification (Cp)	≤0.5
Standard parameters
Project	Product Parameters
Dimensions (WDH) (mm)	1400×1250×2450
Weight (t)	<4
Operating temperature range (℃)	-25~55
Relative humidity (%RH)	0~95%RH
Working altitude (m)	≤4000, (>2000, use reduced limit)
Cooling method	Liquid cooling
Protection level	IP54
Communication interface	4G Wireless/Ethernet/RS485
Qualifying Method	Down in, down out
Firefighting methods	Aerosol, with reserved water fire protection interface

Benefit

High-quality battery cells from leading manufacturers
Advanced liquid cooling technology
Supports multiple units operating in parallel
Real-time fire detection
High safety performance
Intelligent platform, supporting mobile APP and web access
