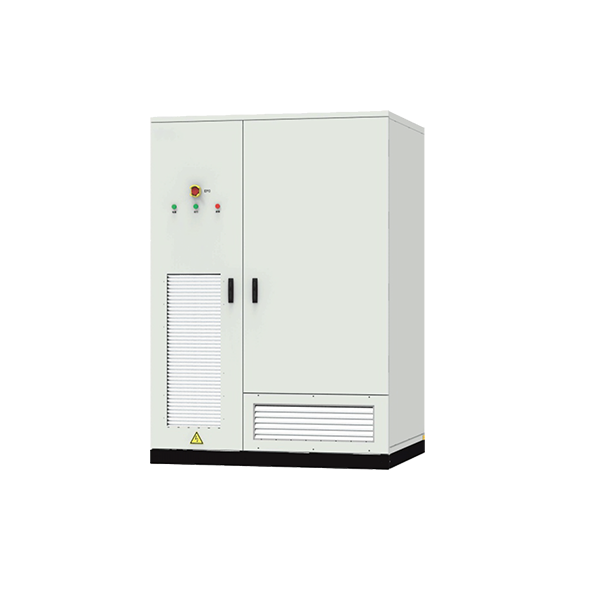

PV-Storage Cabinet-Type System

Employing a standardized design, the lithium battery system, battery management system, firefighting system, liquid cooling thermal management system, and power distribution system are integrated within a single cabinet, offering commercial and industrial users a highly safe, reliable, and long-life energy storage product that can be flexibly configured to suit various application scenarios.

Battery Capacity: 261.248 kWh

Rated Power: 125 kW

Rated Voltage: 832 V

Cooling Method: Intelligent Liquid Cooling

Firefighting System: Aerosol

Dimensions (W × D × H): 1600 × 1350 × 2300 mm

Weight: ~3.33 t

Operating Temperature: -25~60℃ (derating above 45℃)

Communication Interface: Wireless 4G / Ethernet / PQ

Protection Rating: IP54

Relative Humidity: 0~95% RH

Enquire Now Download

Product List

System parameters
Battery Pack Parameters		Battery cluster parameters
Project	Product Parameters	Project	Product Parameters
Cell type	LFP 314Ah	Pack number of strings	5S
Combination method	1P52S	Operating voltage range (Vdc)	728~936
Rated voltage (Vdc)	166.4	Rated voltage (Vdc)	832
Rated energy (kWh)	52.2496	Rated energy (kWh)	261.248
Magnification (Cp)	≤0.5	Magnification (Cp)	≤0.5

AC side parameters		Photovoltaic parameters
Project	Product Parameters	Project	Product Parameters
Rated AC power (kW)	125	Photovoltaic input power (kW)	100
Rated AC current (A)	180	Photovoltaic input power (kW)	100
Rated AC voltage (V)	400	Photovoltaic open-circuit voltage range (V)	250-708
Frequency (Hz)	50/60	Photovoltaic open-circuit voltage range (V)	250-708
Power factor	1 (Ahead of Schedule) ~ 1 (Lagging Behind)	Photovoltaic maximum current (A)	160*2
Current distortion rate	<3% (rated power)	Photovoltaic maximum current (A)	160*2
Communication access methods	Three-phase four-wire	Photovoltaic MPPT number	2

Standard parameters
Project	Product Parameters
Dimensions (WDH) (mm)	1600×1350×2300
Weight (t)	~3.33
Operating temperature range (℃)	-25~60 (>45℃, the rate of decrease)
Relative humidity (%RH)	0~95%RH
Working altitude (m)	≤2000 No derating
Cooling method	Intelligent liquid cooling
Protection level	IP54
Communication interface	4G Wireless/Ethernet/PQ
Qualifying Method	Down in, down out
Firefighting methods	aerosol

Benefit

High-quality battery cells from leading manufacturers
Advanced liquid cooling technology
Supports multiple units operating in parallel
Real-time fire detection
High safety performance
Intelligent platform, supporting mobile APP and web access

Full-stack energy storage solutions, driving a green future with electricity.

Covering a full range of products including air-cooled/liquid-cooled outdoor cabinets, containers, and residential storage.
Meeting the application needs of various scenarios such as industrial, commercial, and residential applications.
Providing comprehensive solutions from investment analysis and operation and maintenance to full lifecycle services.
