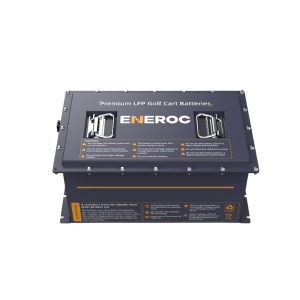

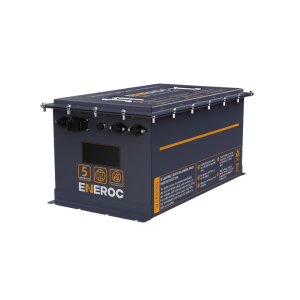

36V Golf Cart LiFePO4 Battery
Product List
| Model | Nominal Voltage(V) | Nominal Capacity(Ah) | Energy(kWh) | Dimension L*W*H(mm) | Max Pulse Discharge Current 30s(A) | Max Pulse Discharge Current 120s(A) | Max Pulse Discharge Current 3s(A) |
| GU3896 | 38.64 | 96 | 3.70 | 498*328*231 | 350 | 250 | 500 |
Benefit
Benefit
-
Reduced energy costs
-
Zero-emission operation
-
Reliable cell quality
-
High safety
-
Extra-long lifespan and warranty for key components
-
Intelligent battery management
-
Modules and Packs
- Highly integrated power battery platform, with cells directly integrated into the battery pack.
- Strong customization capabilities, allowing for products tailored to specific operating conditions and dimensions.
- Robust quality, achieving IP67 protection rating, maintaining excellent performance even in harsh industrial environments.
-
CATL Battery Cells
- Long Lifespan: Up to 4,000 complete cycles, 5 times the lifespan of lead-acid batteries.
- High Uniformity and Stability: High-quality cells used in top-tier electric vehicles.
- Safety: Withstands collision, compression, fire, high and low temperature, and impact tests without catching fire or exploding.
- Stable Quality: Defect rate of only one in a million.
-
Self-developed BMS
- Self-developed algorithms: SOH algorithm based on DCR measurement with ≤5% error, industry-leading.
- Battery management: Power conversion and distribution, low operating and sleep power consumption, maximizing efficiency.
- Fault alarms: Timely alarms by monitoring battery status to prevent serious battery damage
- Easy and low-cost maintenance.
