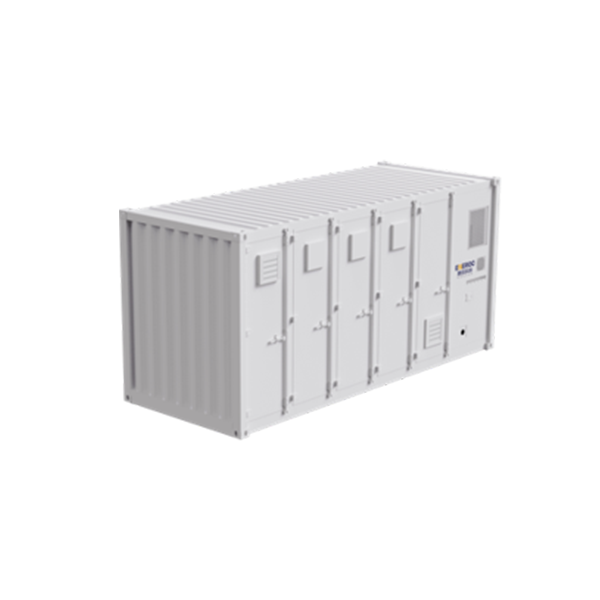

3.44 MWh Liquid Cooling ESS Battery Container
Product List
| System parameters | |
| Battery Pack Parameter | |
| Project | Product Parameters |
| Cell type | LFP 280Ah |
| Combination method | 1P48S |
| Rated voltage (Vdc) | 153.6 |
| Rated energy (kWh) | 43.008 |
| Magnification (Cp) | ≤0.5 |
| Battery cluster parameters | |
| Project | Product Parameters |
| PackString number | 8S |
| Operating voltage range (Vdc) | 1075.2~1382.4 |
| Rated voltage (Vdc) | 1228.8 |
| Rated energy (kWh) | 344.064 |
| Magnification (Cp) | ≤0.5 |
| Battery system parameters | |
| Project | Product Parameters |
| Number of battery clusters | 10 |
| Rated voltage (Vdc) | 1228.8 |
| Rated energy (kWh) | 3440.64 |
| Magnification (Cp) | ≤0.5 |
| Qualifying Method | DC bus |
| Standard parameters | |
| Project | Product Parameters |
| Dimensions (W*D*H) (mm) | 6058×2438×2896 |
| Weight (t) | <35 |
| Operating temperature range (℃) | -30~55 |
| Relative humidity (%RH) | 0~95%RH |
| Working altitude (m) | ≤3000 |
| Cooling method | Liquid cooling |
| Protection level | IP54 |
| Communication Interface | 4G Wireless/Ethernet |
| Qualifying Method | Down in, down out |
| Firefighting Methods | Pack-grade perfluorohexanone, with reserved water fire-fighting interface. |
Benefit
Benefit
-
High-quality battery cells from leading manufacturers
-
Advanced liquid cooling technology
-
Standardized design, flexible configuration
-
High safety performance
-
Pack-level fire protection
-
Intelligent platform, supporting mobile APP and web access
-
Liquid Cooling System Solution
- Liquid cooling system: Includes liquid cooling unit, piping, liquid cooling plates, and mounting pump, coolant, etc.
- Compared to air cooling solutions, it improves thermal management efficiency, space utilization, reduces temperature differences, and enhances battery performance.
- Intra-cluster temperature difference can be controlled within 3°C, energy density is increased by 160%, and thermal management power consumption is reduced by 40%.
-
1500V DC High-Voltage System
-Increases power and energy density of energy storage systems.
-Reduces energy storage system costs and installation/maintenance costs.
-Reduces parallel losses in energy storage systems, improving system efficiency.
-Compared to 1000V systems, power/energy density is increased by approximately 30%, system cost is reduced by approximately 10%, and system efficiency is improved by approximately 1%.
-
Non-walk-in design
- Non-walk-in structure: Doors open on both sides of the container, with no aisle in the middle.
- Improves the convenience and efficiency of installation and maintenance, and enhances the safety of construction personnel.
- Increases the energy density of the energy storage system; a single 20-foot container can accommodate 3.44 MWh.
